AI Thinker BW16 RTL8720DN – Dual-Band WiFi, 1.8″ TFT LCD & Tactile Button Support (PCB Only) V.1
₱600.00
🔒 Safe & Secure Checkout
Bare custom PCB designed for the AI Thinker BW16 (RTL8720DN) module, supporting dual-band WiFi, 1.8″ 128×160 TFT LCD, and 3x6x6 tactile buttons. PCB only (no components included). Compatible with R4TKN firmware projects.
Description
Custom PCB for AI Thinker BW16 RTL8720DN Projects

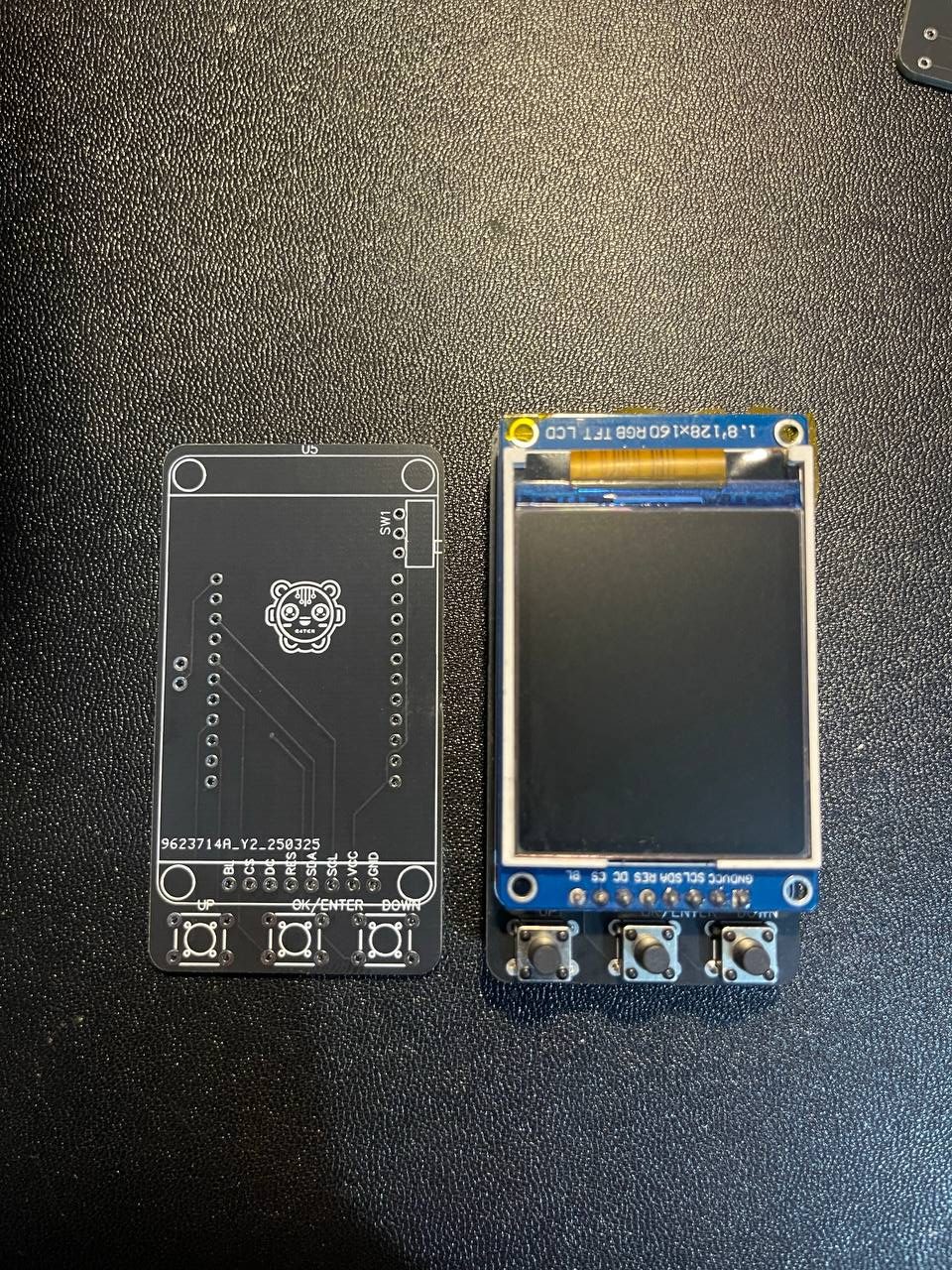

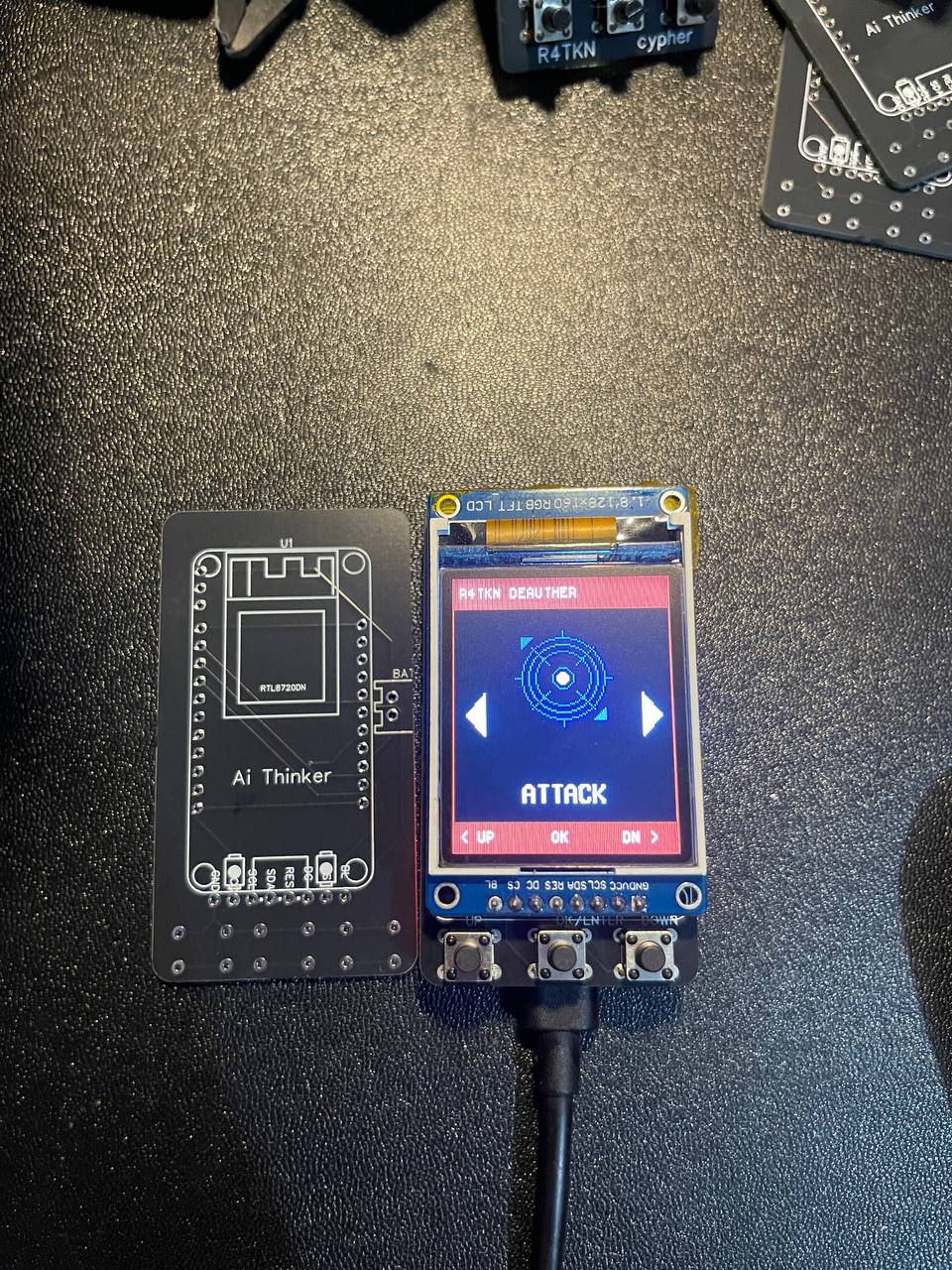

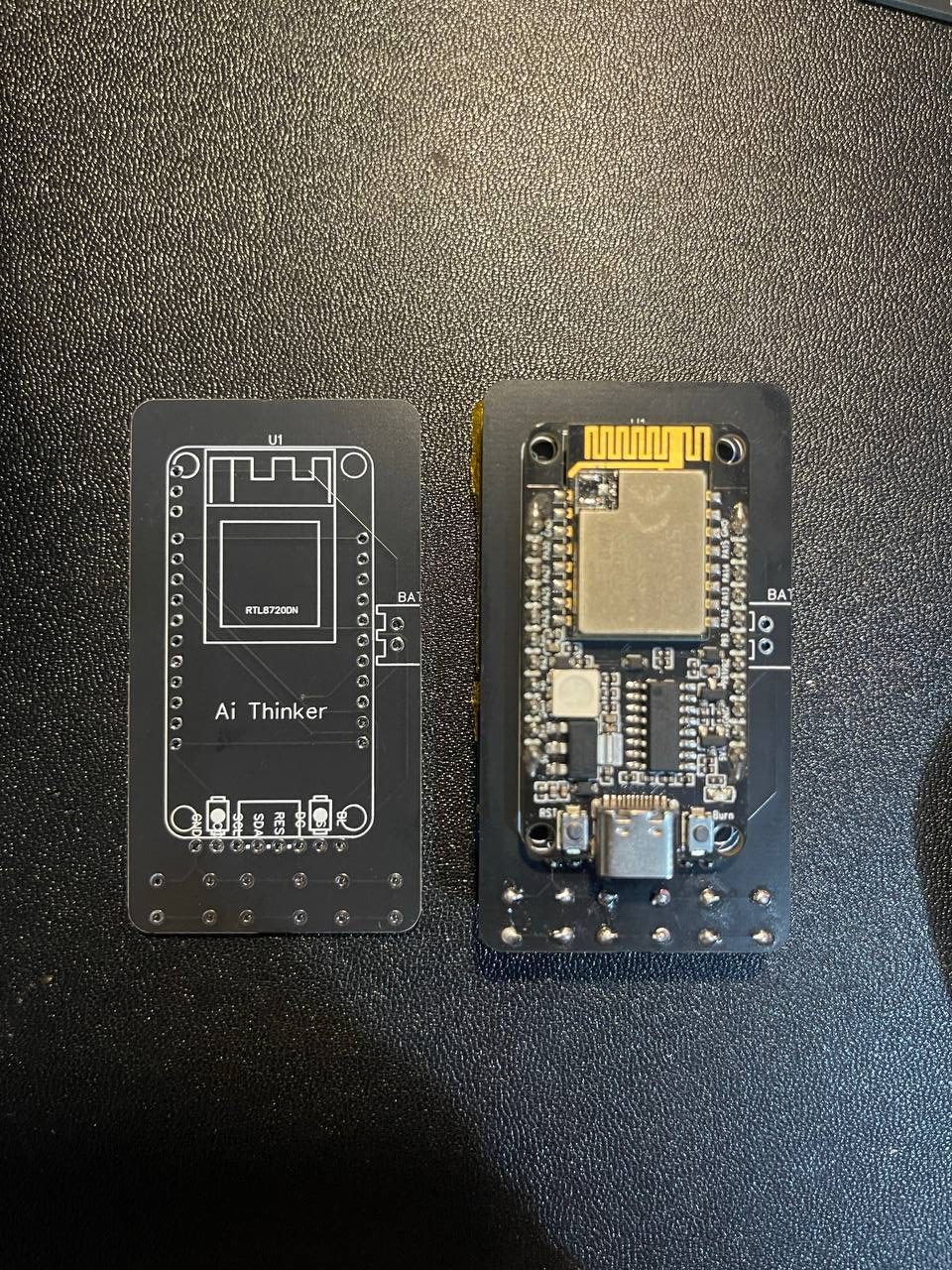

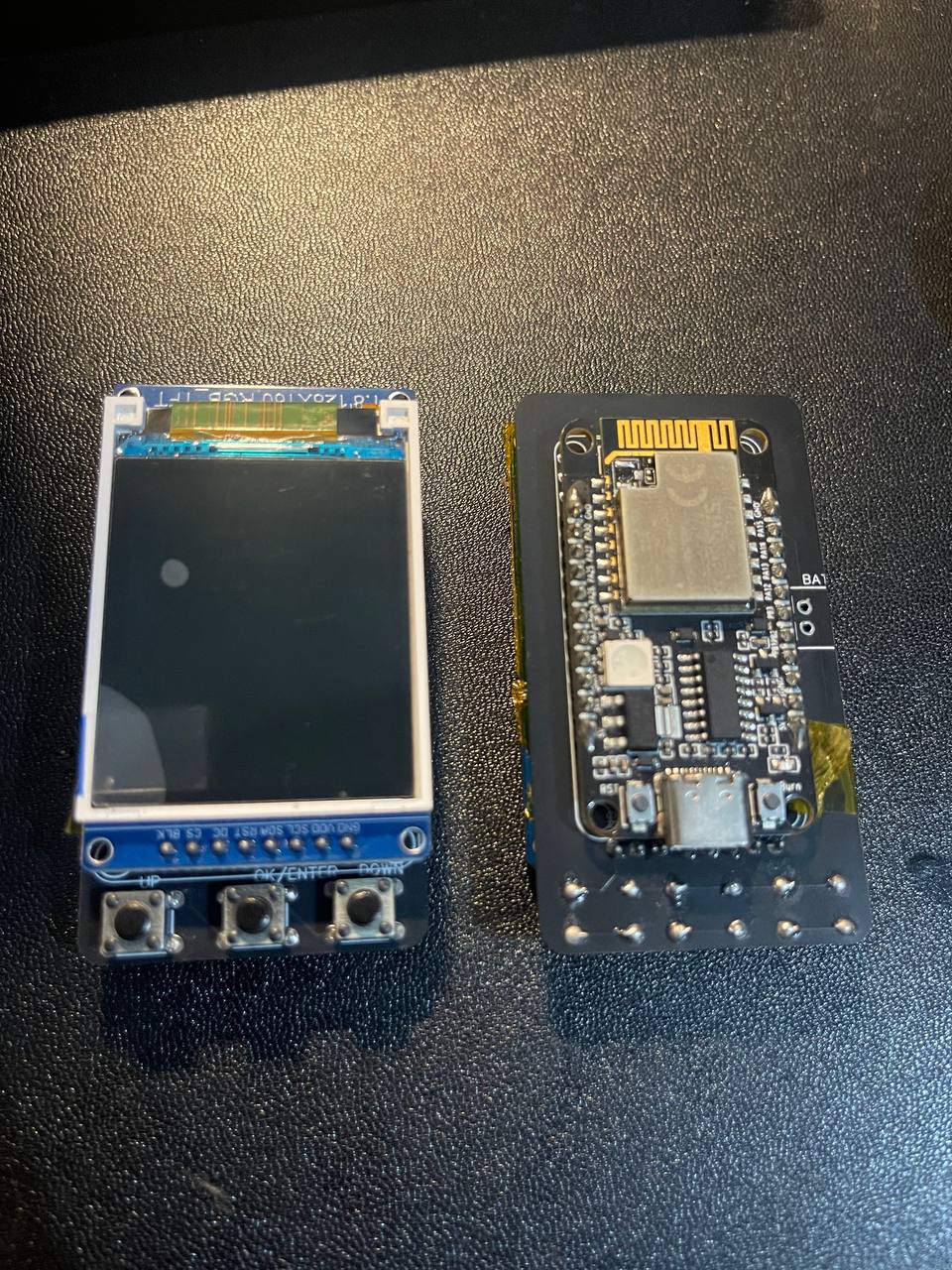

This high-quality bare PCB is designed specifically for the AI Thinker BW16 (RTL8720DN) module, featuring optimized layouts for dual-band Wi-Fi (2.4 GHz / 5 GHz), a 1.8″ 128 × 160 RGB TFT LCD, and three 6 × 6 mm tactile buttons. Ideal for custom firmware builds like R4TKN or IoT prototypes.
Specifications:
- Designed For: AI Thinker BW16 (RTL8720DN) module
- Display Support: 1.8″ 128 × 160 RGB TFT LCD connector
- Button Support: 3 × 6 × 6 mm tactile-switch footprints
- Dual-Band Wi-Fi: Antenna integration for 2.4 GHz / 5 GHz
- Compatibility: R4TKN-firmware-ready design
- Material: FR-4, 1.6 mm thickness (standard)
- Surface Finish: Lead-free HASL (default)
Notes:
✓ This is a bare PCB only – no components (Wi-Fi module, LCD, buttons, etc.) are included.
✓ Requires soldering and assembly.
✓ Designed for developers familiar with the BW16 ecosystem.
