Cypher Jammer ESP32 DevKit v1.0 PCB – Custom Board for 0.96″ OLED, Dual E01-2G4M27D & Tactile Button (PCB Only)
₱600.00
🔒 Safe & Secure Checkout

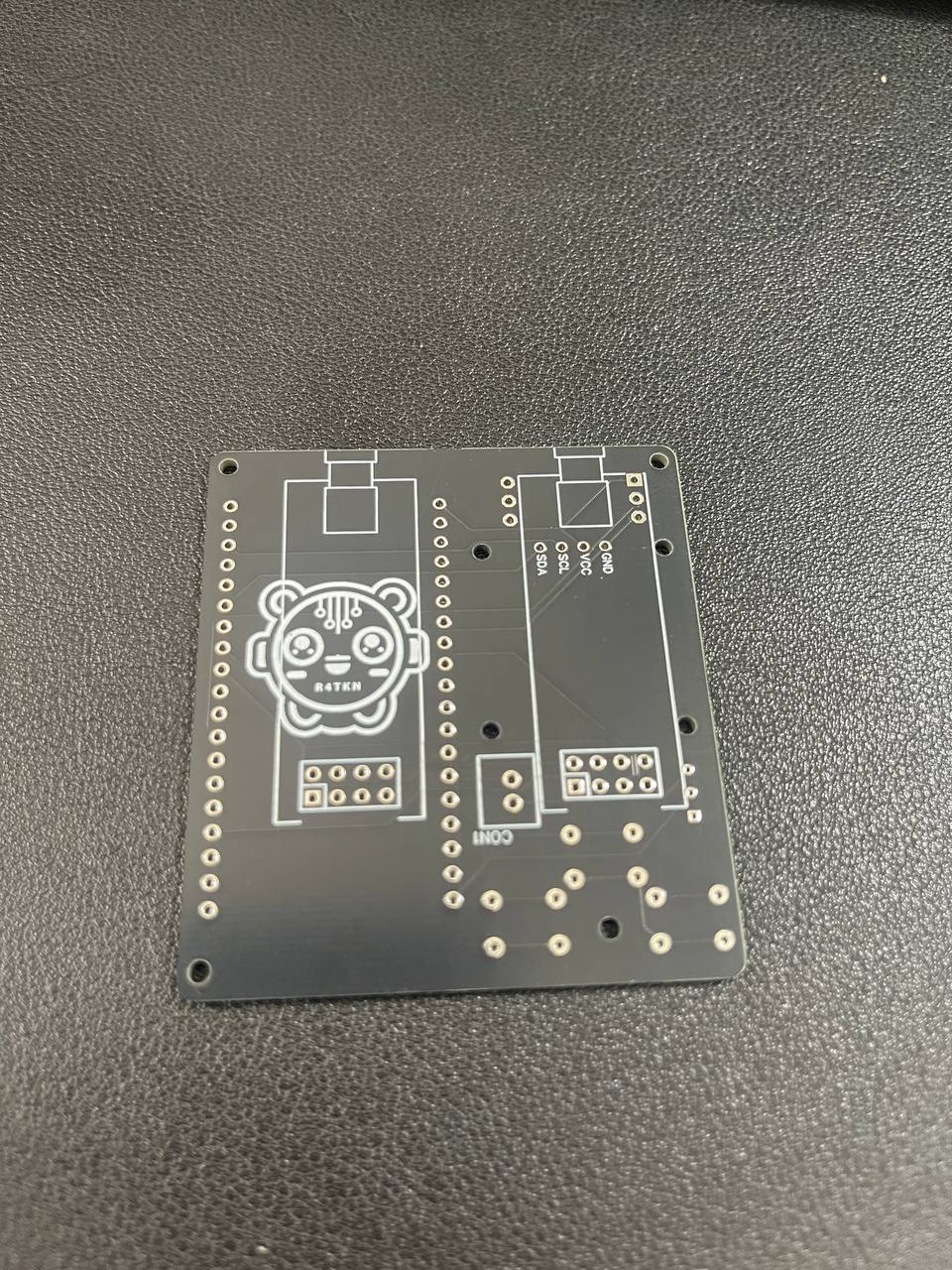

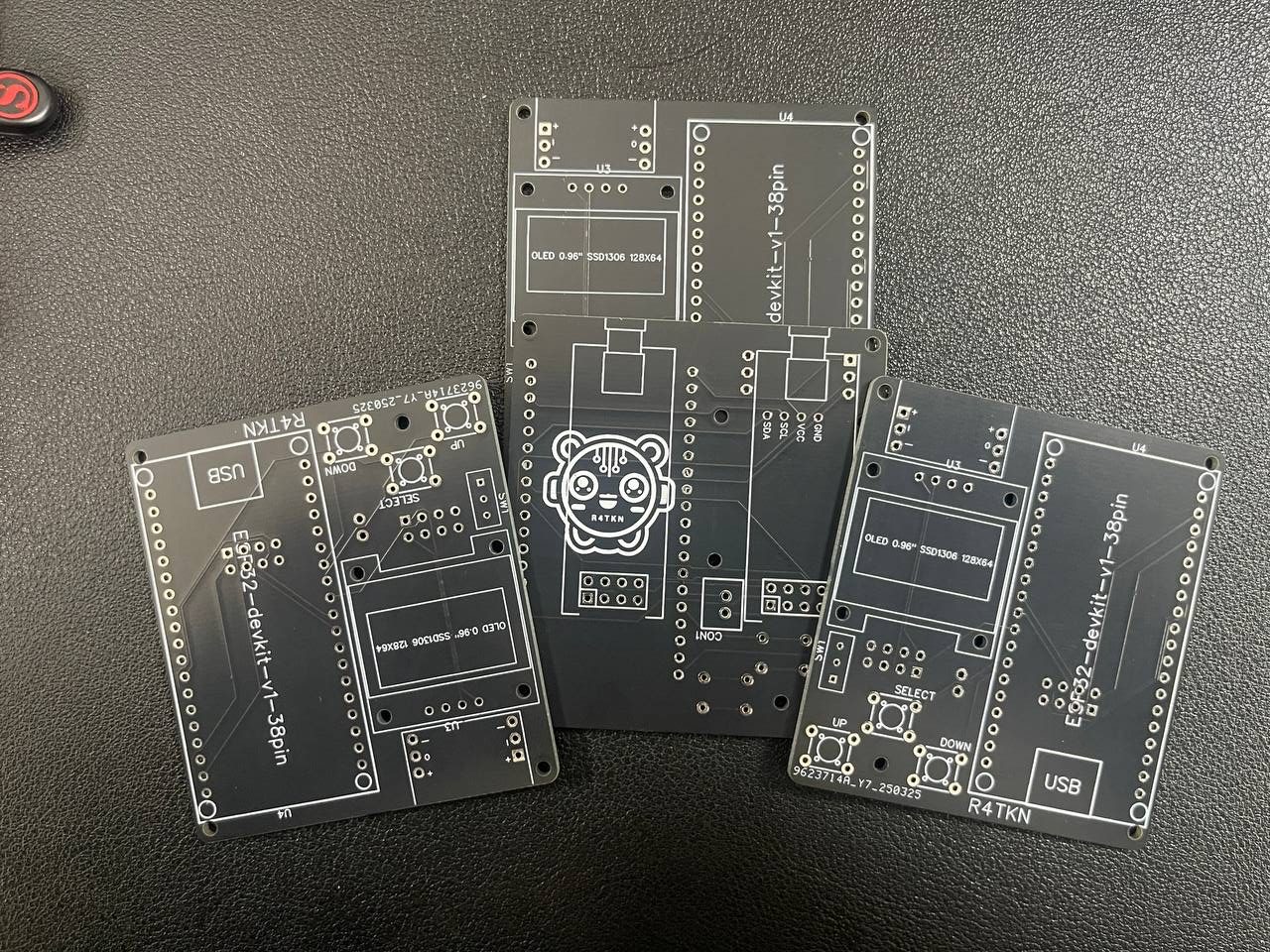

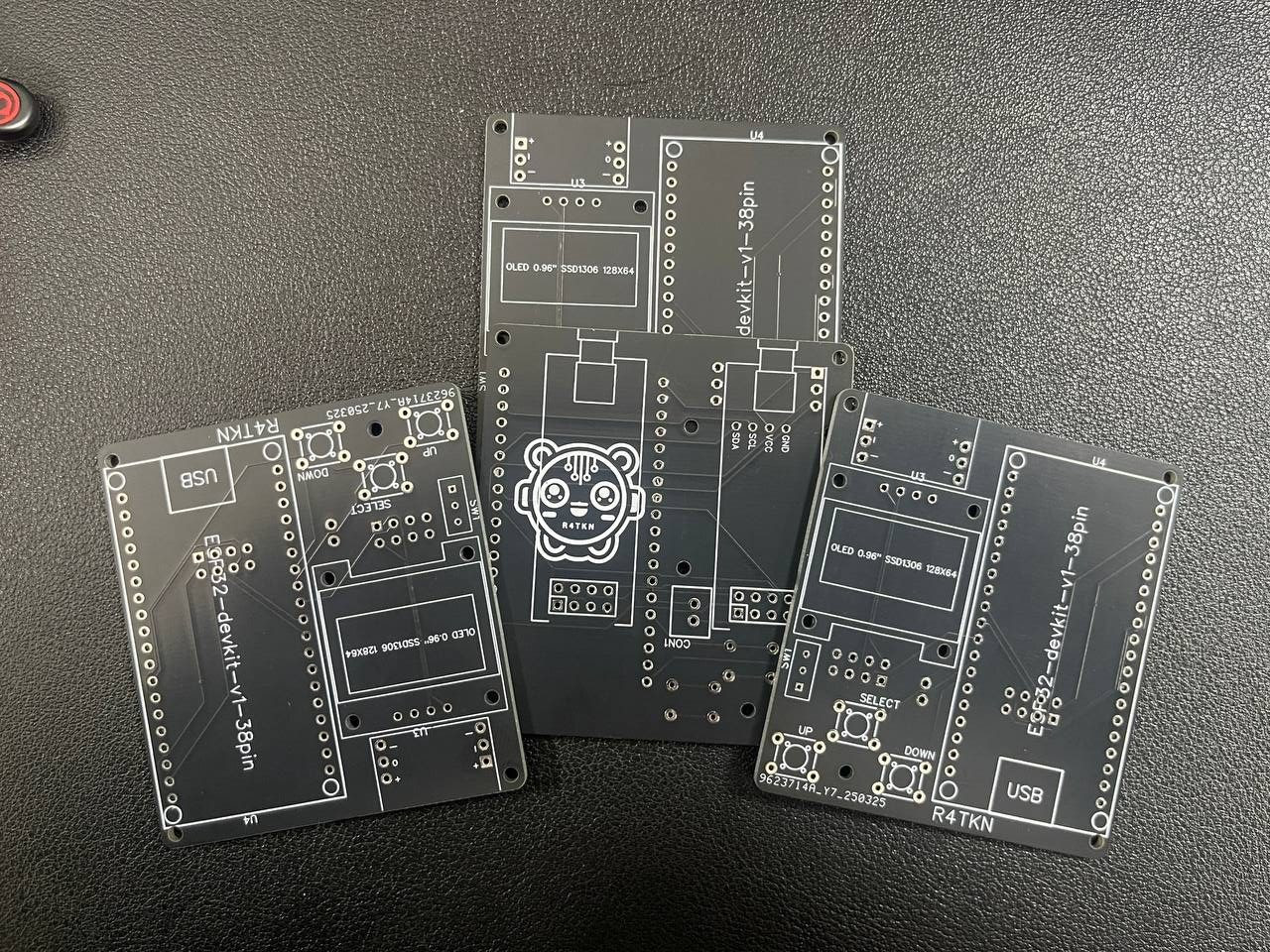

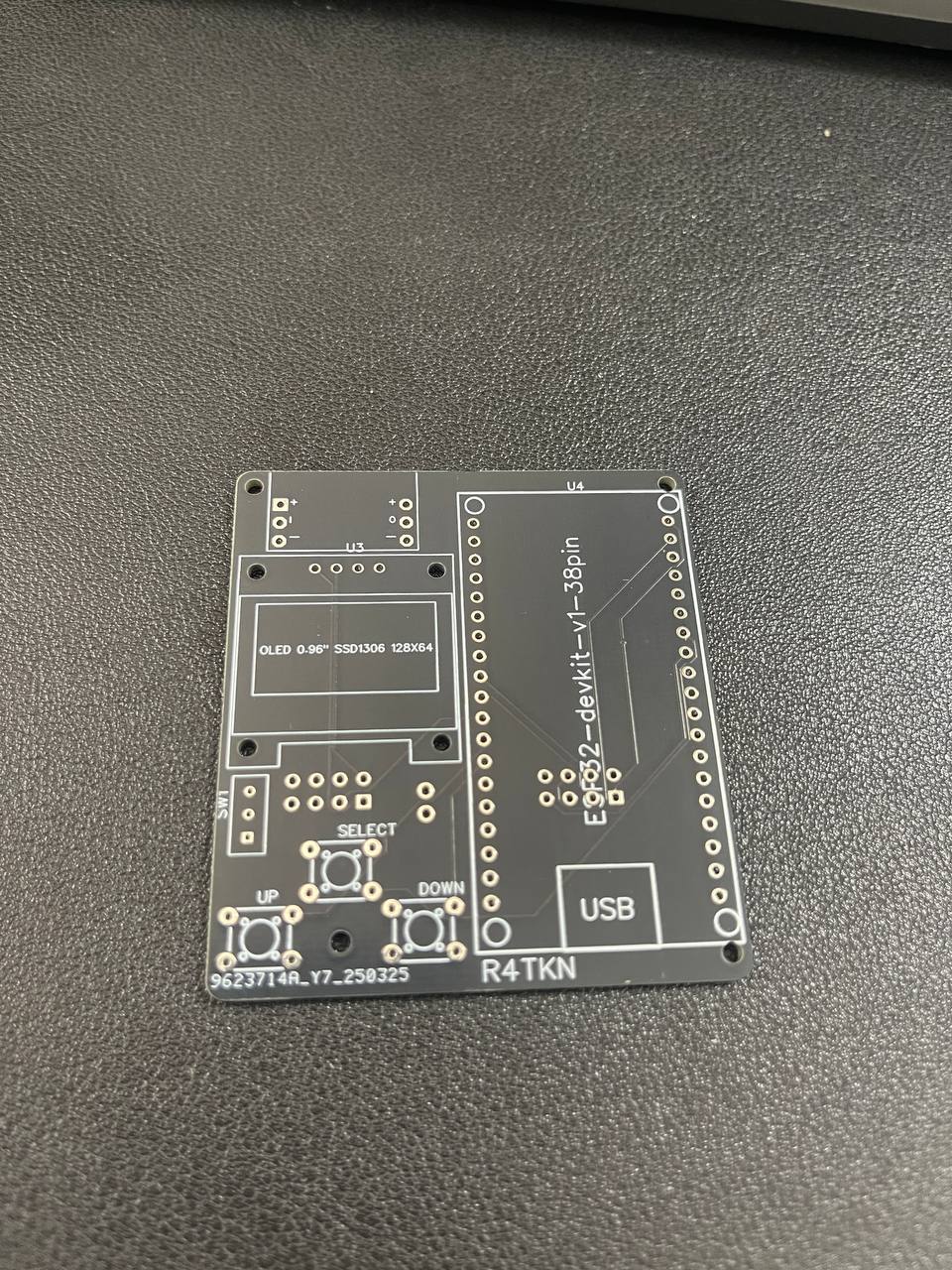

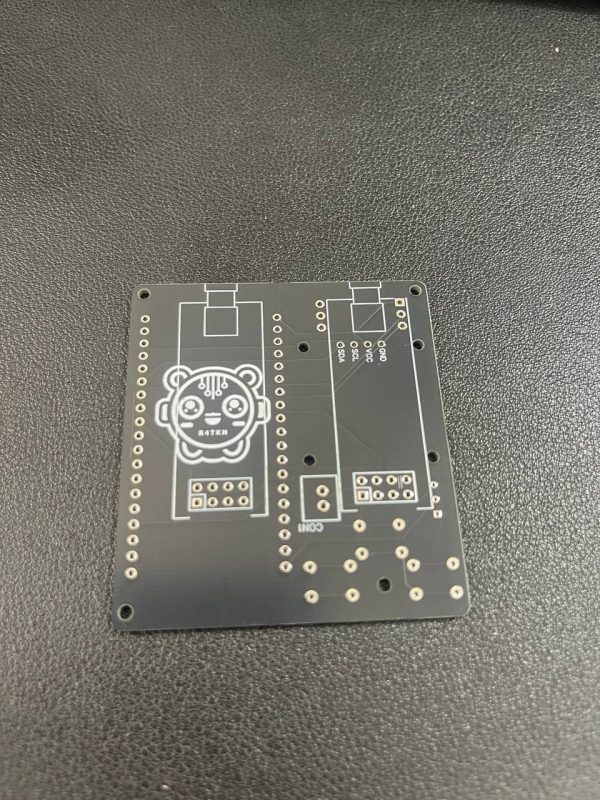

Bare custom PCB designed for ESP32 DevKit v1.0 (38-pin) with integrated footprints for: 0.96″ OLED, dual E01-2G4M27D modules, and tactile button. PCB only – no components included. Ideal for RF/IoT projects.
Description
Overview
This high-quality bare PCB is engineered for the ESP32 DevKit v1.0 (38-pin) microcontroller, featuring optimized layouts for:
-
0.96″ OLED display (I2C/SPI compatible)
-
Dual E01-2G4M27D RF modules (2.4GHz LoRa/FSK)
-
Tactile button (user input)
Designed for Cypher Jammer and other RF/IoT applications, this PCB provides a solid foundation for advanced wireless projects.
Key Specifications
| Feature | Details |
|---|---|
| Target MCU | ESP32 DevKit v1.0 (38-pin) |
| Display Support | 0.96″ OLED (SSD1306, I2C/SPI) |
| RF Module Support | 2x E01-2G4M27D (2.4GHz LoRa/FSK) footprints |
| User Input | 1x Tactile button footprint |
| PCB Material | FR4, 1.6mm thickness |
| Surface Finish | Lead-free HASL (RoHS compliant) |
| Compatibility | Arduino/PlatformIO/ESP-IDF; Cypher Jammer firmware-ready |
Important Notes
⚠ This is a bare PCB only – No components included. You must source and solder:
-
ESP32 DevKit v1.0 (38-pin)
-
0.96″ OLED display
-
2x E01-2G4M27D modules
-
Tactile button
🔧 Assembly required – Designed for users with intermediate soldering skills.
📁 Design Files – Gerber files available upon request (contact seller).
