Description

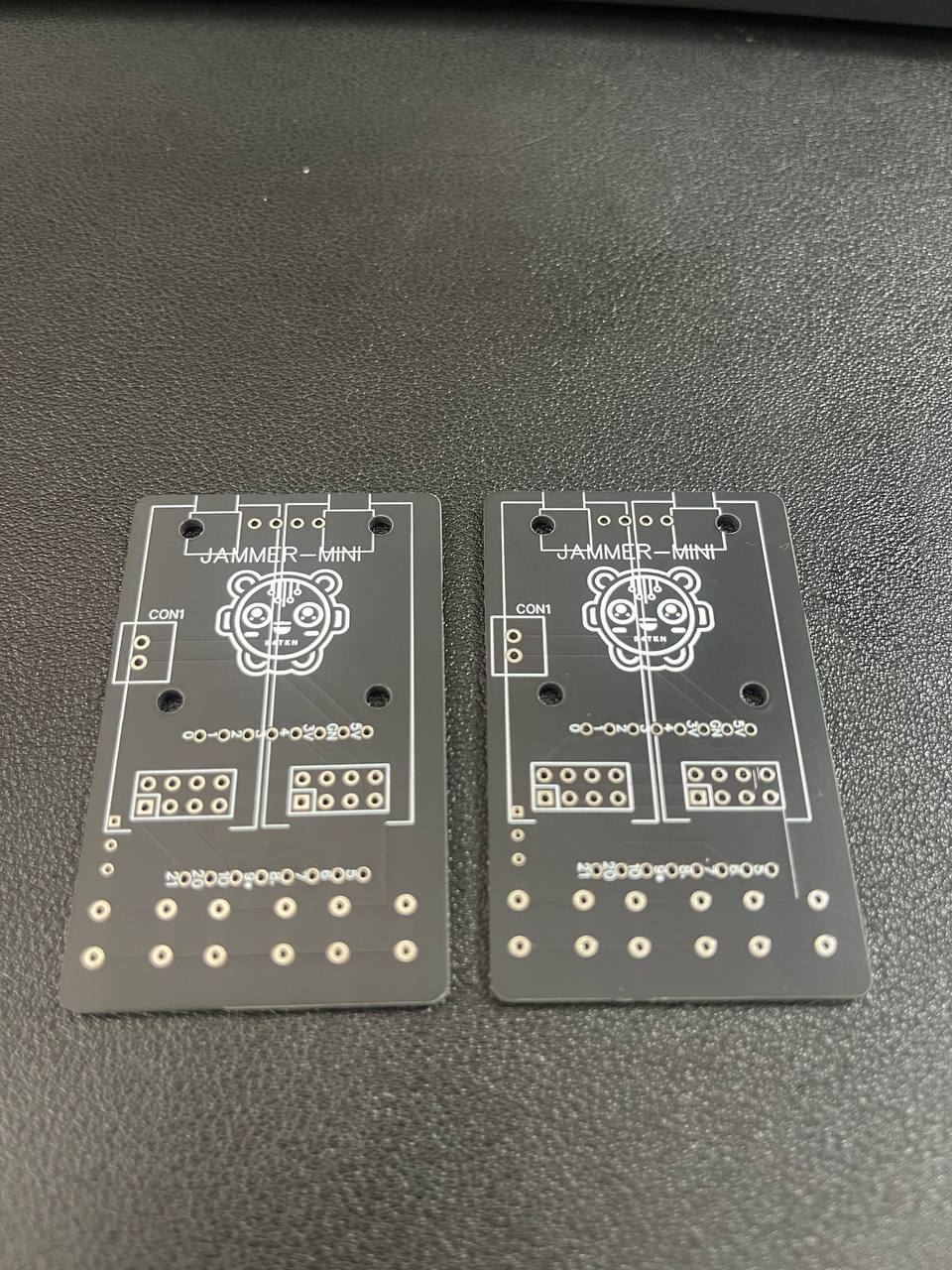

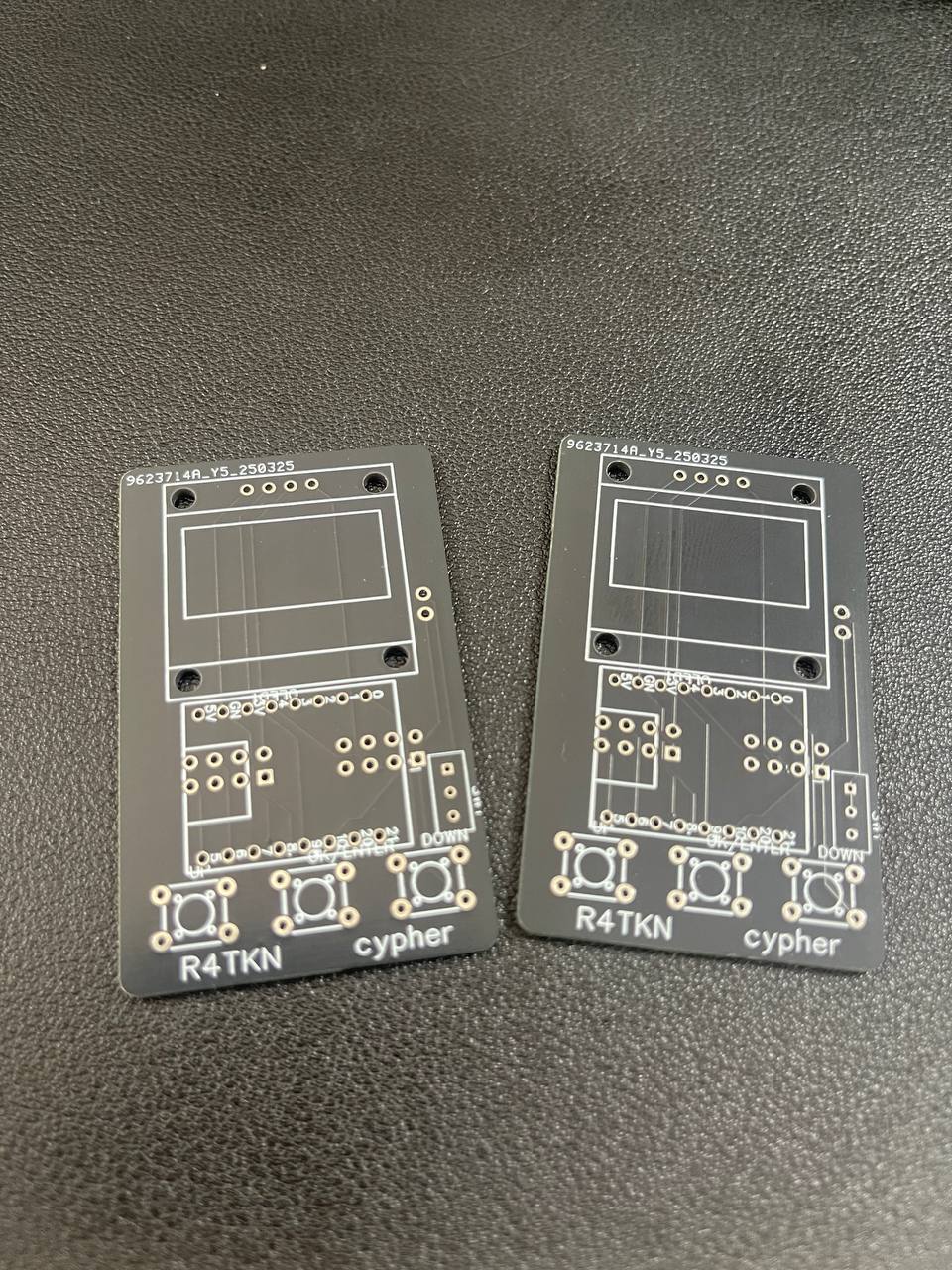

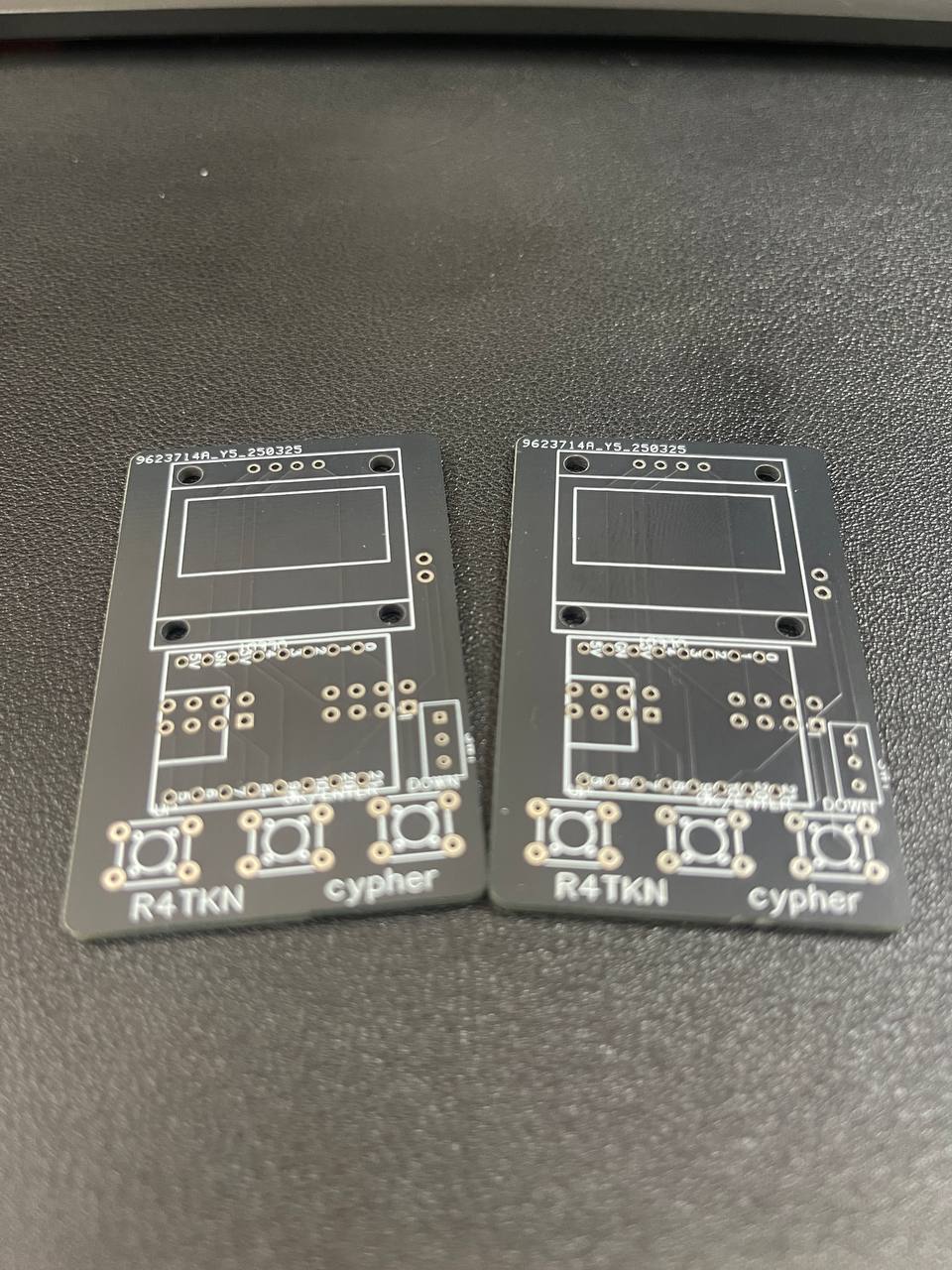

This is the printed circuit board only for building your own BLE jammer device. The PCB provides footprints and routing for the ESP32-C3 Super Mini module, dual NRF24L01+PA+LNA transceivers, and a 0.96″ OLED screen. It’s perfect for custom enclosures and DIY assemblies—simply solder on your modules and start jamming.

Key Features

• Bare PCB Only: No modules or components included

• Module Footprints:

  • ESP32-C3 Super Mini

  • 2× NRF24L01+PA+LNA (with SMA antenna connectors)

  • 0.96″ I²C OLED display

  • 3x Tacticle Button 6×6

• Test Points & Headers: Easy access to all GPIO, power rails, and SPI lines

• Power Input: 5 V via USB-C footprint or 3.3 V via VIN pad

• Mounting Holes: Standard 3.2 mm holes for standoffs

• Silkscreen Labels: Clear component identifiers for straightforward assembly
